Specification

Strataworx®Alternate Text

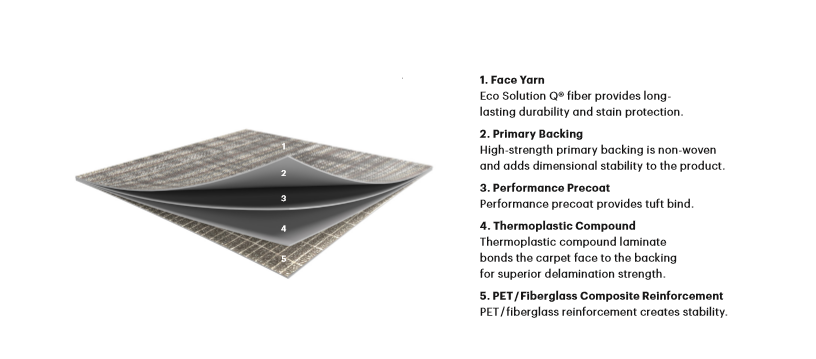

features / benefits Lightweight polymer composite backing system engineered for efficiency in manufacturing, transportation, and at the job site .

Post Consumer / Post Industrial Content.
Innovative lightweight backing for maximum efficiency.
Ease of handling, installation, and storage.
Alternative to broadloom carpet or PVC carpet tile.
primary Synthetic
stabilizer Fiberglass
backing thickness 0.085 inches
dimensions 24" x 24" (standard), optional sizes available
testing Impact Insulation Class (IIC) rating (ASTM E492-09/E989-06) when paired with the appropriate StrataWorx products, results typically range from 55 –65, depending on subfloor assembly and StrataWorx products. For specific results, please contact your account manager.
environmental See specific product specifications for environmental information / certifications.
installation Full Spread 3000,5000,4151, Advantage System, LokDots, LokWorx Tabs
warranty Carpet Tile 15 Year Commercial Limited Warranty for StrataWorx
Carpet Tile 15 Year Commercial Limited Warranty with Stain and Color for StrataWorx

Revision: 05192023
230 Douthit Ferry Road | Cartersville GA 30120 | USA | 1 800.257.7429 | shawcontract.com
